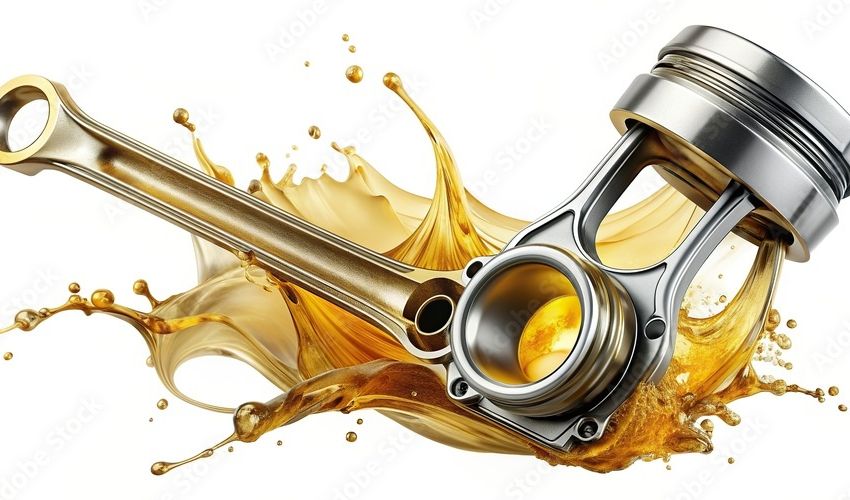

Connecting Rod

Introduction

The connecting rod is a fundamental component in internal combustion engines, acting as the vital link between the piston and the crankshaft. It plays a crucial role in converting the linear motion of the piston into rotational motion of the crankshaft, thereby generating the mechanical power required to drive the vehicle or machinery. Understanding the function, design, and maintenance of the connecting rod is essential for ensuring optimal engine performance and longevity.

Function of the Connecting Rod

The primary function of the connecting rod in an internal combustion engine is to:

  • 1.Transfer Motion: The connecting rod transfers the reciprocating motion of the piston to the rotational motion of the crankshaft.
  • 2.Support Piston: The connecting rod supports the piston and allows it to move freely within the cylinder bore.
  • 3.Absorb Forces: The connecting rod absorbs and distributes the forces generated during combustion, ensuring smooth and efficient engine operation.

Key Components of the Connecting Rod


1.Big End (Cap):

  • Function: Connects to the crankshaft journal and transmits the reciprocating motion of the piston.
  • Material: High-strength steel or alloy with excellent fatigue resistance and durability.
2.Small End (Eye):

  • Function: Connects to the piston wrist pin and guides the motion of the piston within the cylinder bore.
  • Design: Precision machined to ensure optimal fitment and alignment with the piston wrist pin.
3.Bolts and Fasteners:

  • Function: Securely fasten the connecting rod cap to the rod body and the rod to the crankshaft.
  • Material: High-strength steel or alloy with excellent tensile strength and fatigue resistance.
4.Bearings:

  • Function: Reduce friction and wear between the connecting rod and crankshaft journal.
  • Types: Plain bearings, roller bearings, or needle bearings depending on the engine design and application.
  • Material: High-quality bearing material with excellent load-bearing capacity and wear resistance.
5.Oil Passages:

  • Function: Provide lubrication to the connecting rod bearings to reduce friction and minimize wear.
  • Design: Well-engineered passages for efficient oil flow and cooling of the connecting rod bearings.

Maintenance and Care


  • Regular Inspection: Check for signs of wear, cracks, or damage to the connecting rod, bolts, and bearings during routine maintenance intervals.
  • Proper Lubrication: Ensure adequate lubrication of the connecting rod bearings to reduce friction and minimize wear.
  • Bolt Torque: Maintain proper torque specifications for connecting rod bolts to ensure secure fastening and prevent loosening during engine operation.
  • Coolant Quality: Maintain proper coolant levels and use high-quality coolant to prevent overheating and thermal damage to the connecting rod and bearings.
  • Alignment and Balancing: Periodically check and adjust the alignment and balance of the connecting rods to ensure smooth and efficient engine operation.

Conclusion

The connecting rod is a critical component in internal combustion engines, serving as the vital link between the piston and the crankshaft. Understanding its functions, key components, and maintenance requirements is essential for ensuring optimal engine performance, efficiency, and longevity. By investing in quality materials, regular maintenance, and timely replacements, engine operators can ensure smooth operation and prolonged service life for their vehicles and machinery.
