Piston

Introduction

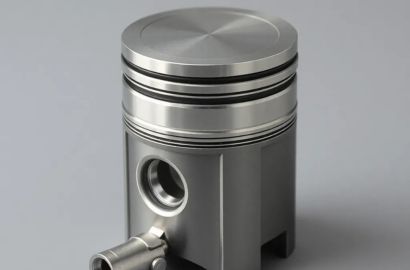

The piston is a crucial component in internal combustion engines, responsible for converting the energy generated from the combustion of air-fuel mixture into mechanical motion. It moves up and down within the cylinder bore, transmitting force to the connecting rod and eventually turning the crankshaft to drive the vehicle or machinery. Understanding the role of the piston, its design, and maintenance is essential for optimizing engine performance and longevity.

Function of the Piston

The primary function of the piston in an internal combustion engine is to:

  • 1.Seal the Combustion Chamber: The piston forms a seal with the cylinder walls, containing the combustion gases within the combustion chamber during the power stroke.
  • 2.Transfer Force: The piston transfers the force generated by the combustion of the air-fuel mixture to the connecting rod, which then rotates the crankshaft to generate mechanical power.
  • 3.Heat Dissipation: The piston absorbs and dissipates heat generated during combustion, helping to maintain optimal operating temperatures within the engine.

Key Components of the Piston


1.Piston Crown:

  • Function: The top surface of the piston that is subjected to high temperatures and pressures during combustion.
  • Material: High-strength aluminum alloy or steel with excellent heat resistance and durability.
2.Piston Skirt:

  • Function: The cylindrical portion of the piston that guides its movement within the cylinder bore.
  • Design: Designed for optimal clearance and minimal friction with the cylinder walls.
3.Piston Rings:

  • Function: Seals the gap between the piston and cylinder wall, preventing leakage of combustion gases and lubricating oil.
  • Types: Compression rings (top and second) and oil control rings.
  • Material: High-strength steel or cast iron with excellent wear resistance and conformability.
4.Wrist Pin (Piston Pin):

  • Function: Connects the piston to the connecting rod, allowing for the piston's oscillating motion within the cylinder.
  • Material: Hardened steel or alloy with excellent strength and durability.
5.Cooling Channels:

  • Function: Internal passages within the piston to dissipate heat and maintain optimal operating temperatures.
  • Design: Well-engineered channels for efficient heat transfer and cooling.

Maintenance and Care


  • Regular Inspection: Check for signs of wear, scoring, or damage to the piston crown, skirt, and rings during routine maintenance intervals.
  • Proper Lubrication: Ensure adequate lubrication of the piston skirt and cylinder walls to reduce friction and minimize wear.
  • Coolant Quality: Maintain proper coolant levels and use high-quality coolant to prevent overheating and thermal damage to the piston.
  • Ring Replacement: Replace worn or damaged piston rings promptly to maintain optimal compression and prevent oil consumption.
  • Cleaning: Keep the piston and combustion chamber clean to prevent the buildup of carbon deposits and contaminants that can affect performance and efficiency.

Conclusion

The piston is a vital component in internal combustion engines, converting the energy from combustion into mechanical motion to drive vehicles and machinery. Understanding its functions, key components, and maintenance requirements is essential for optimizing engine performance, efficiency, and longevity. By investing in quality materials, regular maintenance, and timely replacements, engine operators can ensure smooth operation and prolonged service life for their vehicles and machinery.
