Introduction

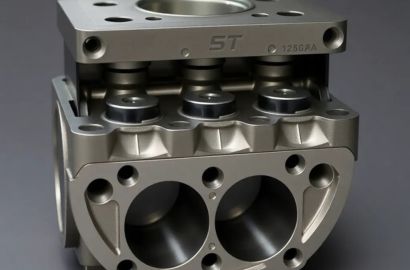

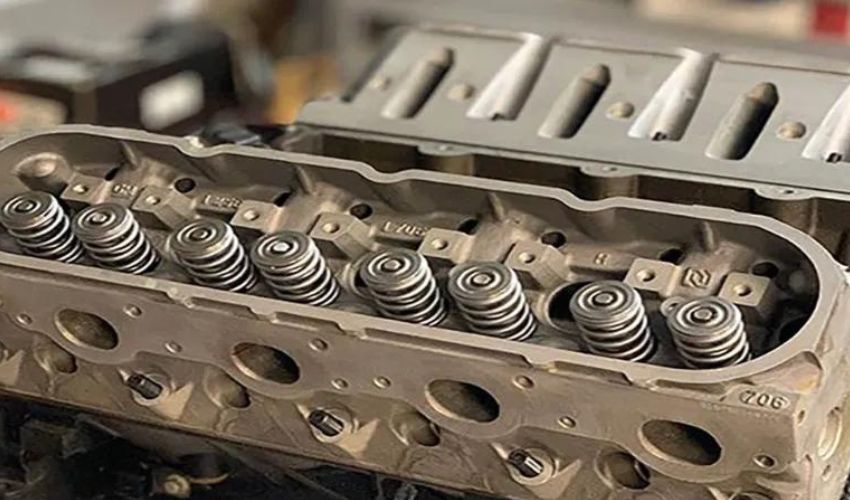

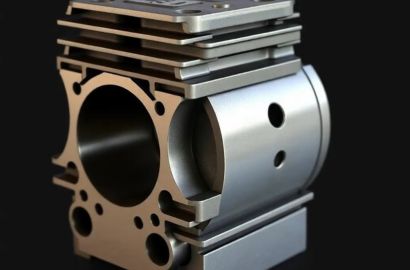

The cylinder head is a vital component of an internal combustion engine, serving as the top cover of the engine block and housing several critical systems, including the combustion chamber, valves, and camshaft. It plays a pivotal role in the engine's performance, efficiency, and overall functionality. Understanding the significance of the cylinder head and its components is essential for maintaining optimal engine operation and longevity.
Function of the Cylinder Head
The cylinder head performs several crucial functions that contribute to the efficient operation of an internal combustion engine:
- 1.Combustion Chamber: The cylinder head contains the combustion chamber where the air-fuel mixture is ignited, generating power to drive the engine.
- 2.Valve Operation: The cylinder head houses the intake and exhaust valves, which control the flow of air and exhaust gases in and out of the combustion chamber.
- 3.Cooling: The cylinder head contains coolant passages that help dissipate heat generated during combustion, maintaining optimal operating temperatures within the engine.
- 4.Camshaft Support: The cylinder head houses the camshaft, which controls the opening and closing of the valves, ensuring precise timing and optimal engine performance.
- 5.Sealing: The cylinder head forms a tight seal with the engine block, preventing leakage of combustion gases and coolant.
Key Components of the Cylinder Head
1.Valves and Valve Seats:
- Function: Control the intake of air-fuel mixture and exhaust of combustion gases.
- Material: High-strength steel or alloy with excellent wear resistance and heat tolerance.
2.Combustion Chamber:
- Function: Enclosed space where the air-fuel mixture is ignited.
- Shape: Designed for optimal combustion efficiency and performance.
3.Coolant Passages:
- Function: Circulate coolant to dissipate heat from the combustion chamber and cylinder head.
- Design: Well-engineered passages for efficient heat transfer and cooling.
4.Camshaft Bore:
- Function: Support and align the camshaft for precise valve timing.
- Material: Hardened steel or alloy to withstand high stress and wear.
5.Gasket Sealing Surface:
- Function: Form a tight seal between the cylinder head and engine block.
- Material: High-quality composite or metal gasket materials for durability and reliability.
